Introduction

High‑efficiency (condensing) gas furnaces like Goodman, Carrier, and other mainstream brands require careful installation of both the intake (combustion‑air) pipe and the exhaust (vent) pipe. If done incorrectly, venting can cause dangerous back‑drafts, condensate issues, or violation of codes. In this guide, I’ll walk you through key installation standards, common pitfalls, and preventive measures. At the end, I also recommend a reliable termination cap that helps protect your vent system.

1. Why Proper Venting Is Critical

  • Condensing gas furnaces operate under positive pressure, forcing combustion products (flue gas) through PVC (or other approved) piping instead of relying on natural draft.

  • These furnaces often use a two-pipe direct-vent system: one pipe draws fresh outside air, and the other exhausts combustion gases.

  • Following the manufacturer’s installation instructions and relevant codes (such as NFPA 54 / ANSI Z223.1 in the U.S.) is mandatory for safety, performance, and compliance.

  • Correct pipe material, proper slope, drainage, and secure termination are essential to avoid condensate pooling, blockages, or corrosion.

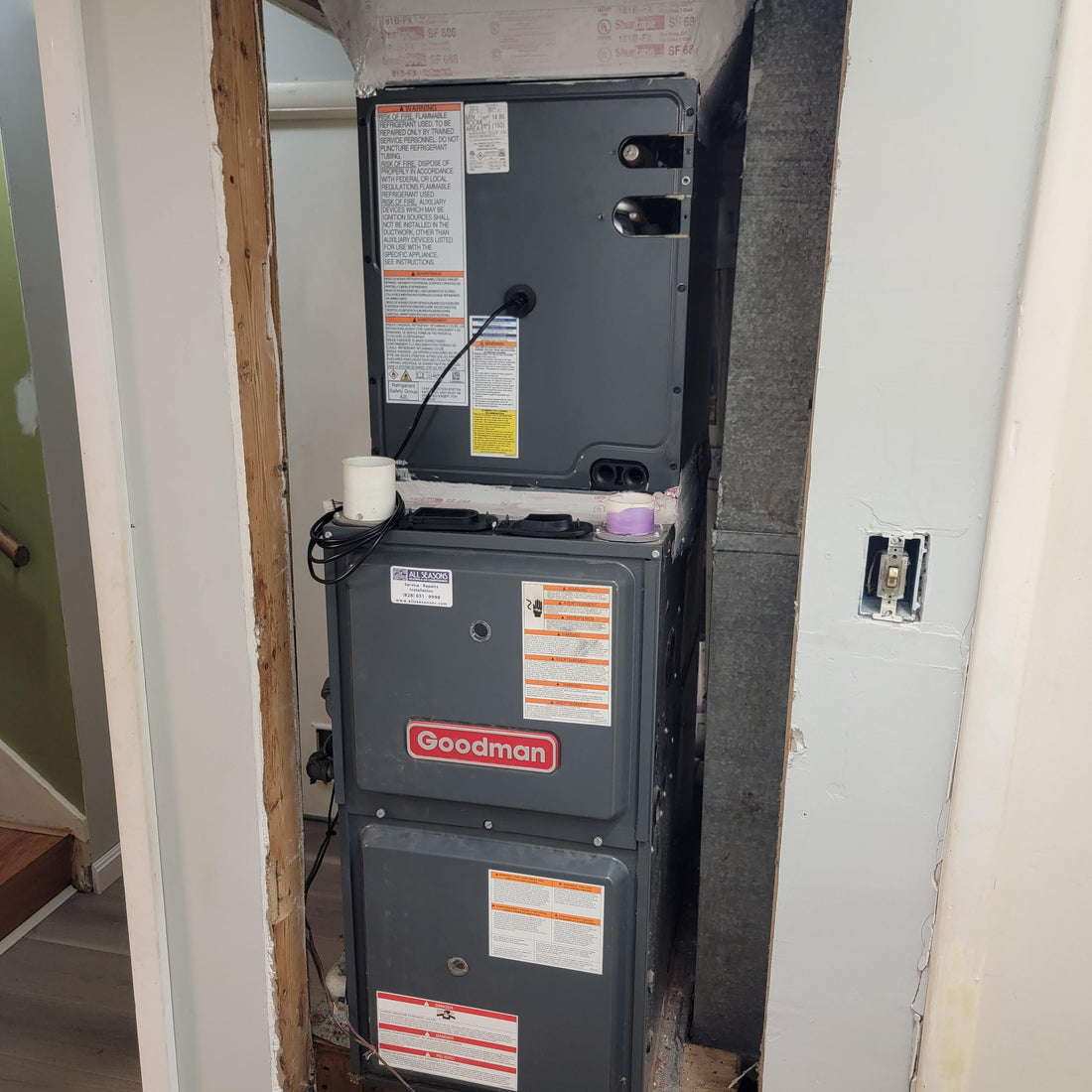

2. Key Installation Guidelines for Goodman Furnaces

  1. Clearance & Access

    • Goodman requires permanent clearances to combustible materials, as listed on the furnace’s label, plus a minimum of 24 in front for servicing. Unilog+2phdplumbing.net+2

    • If you use alternate intake or exhaust connections, you must allow additional clearance for those pipes. phdplumbing.net

  2. Pipe Materials

    • Goodman allows use of PVC, CPVC, or ABS for intake and exhaust in condensing (direct‑vent) installations. manualsfile.com

    • Use medium- or long-radius 90° elbows (not tight bends). For example, with 2" pipe, Goodman requires a certain minimum radius. manualsfile.com

    • Use compatible primer and solvent cement as specified. Mixing incompatible materials can lead to leaks or failure.

  3. Slope & Condensate Drainage

    • Horizontal exhaust runs must slope back toward the furnace so condensate returns rather than sitting in the pipe. This is a common requirement from both industry practice and safety manuals. How to Choose Best HVAC Systems+1

    • Make sure joints are properly supported and secured; sagging can lead to water traps or joint stress.

  4. Termination Clearance

    • The flue (exhaust) termination should be at least 12 inches above anticipated snow level (or grade) in outdoor installations. 手册库

    • The exhaust outlet must be spaced properly relative to air inlets or combustibles; for example, Goodman warns that the flue outlet must be at least 12 in from any opening that could reintroduce flue gases. igate.northernplumbing.com

    • Ensure the termination is well-sealed and protected to prevent pests or debris from entering.

  5. Leveling the Furnace

    • The furnace must be mounted level (or with a slight tilt) to ensure proper drainage of condensate from the heat exchanger. manualsfile.com

3. Key Installation Guidelines for Carrier Furnaces

  1. Vent & Combustion-Air Pipe Sizing

    • Carrier’s manuals specify that when using a two‑pipe system, both the intake and exhaust pipes should match in diameter. device.report+1

    • Use the Total Equivalent Vent Length (TEVL) calculation: straight pipe length plus equivalent length for elbows, fittings, etc., must not exceed the Maximum Equivalent Vent Length (MEVL) specified in the manual. Manuals+

  2. Condensate Trap

    • Carrier recommends an external vent trap kit if there is a risk of condensate buildup in vertical or horizontal runs. device.report+1

    • That trap should be installed at the lowest point of the vent system, within 24 in of where the vent exits the furnace, according to the trap kit instructions. device.report

    • For the intake (combustion-air) pipe, if moisture is a concern, a trap can also be installed to prevent water from collecting or being drawn into the furnace. device.report

    • When you include the trap in the system, add 15 ft (5 m) equivalent length (per Carrier documentation) when calculating TEVL. device.report

  3. Slope & Support

    • For vent pipes using the external trap kit, slope is critical: typically ¼ in per foot (≈ 20 mm/meter) toward the trap, with no sags between hangers. device.report

    • Do not slope the vent toward the furnace if the trap is designed to be the low point — mis‑slope can prevent proper drainage. device.report

  4. Clearance & Separation

    • Carrier directs that vent terminations (intake and exhaust) must be spaced so as to avoid recirculation of flue gases. In one model’s manual, terminations must be at least 36 inches apart when more than one furnace is vented nearby. Manuals+

    • For short vent runs (5–8 ft), Carrier recommends a minimum 12 in horizontal pipe section before any elbow to reduce excessive condensate droplets exiting the pipe.

4. Common Mistakes & Safety Precautions

  • Using Incorrect Pipe Material: Some installers mistakenly use wrong plastic pipe types. For condensing furnaces, you must use pipe specified by the furnace manufacturer (e.g., schedule 40 PVC, CPVC, or ABS). manualsfile.com

  • Poor Slope: If the exhaust (or intake) pipe doesn’t slope properly, condensate can pool, causing corrosion, blockages, or water getting into the furnace.

  • Ignoring Trap Requirements: Skipping the external vent trap (or improperly locating it) risks condensate pooling, which can interfere with furnace operation or damage components.

  • Incorrect Equivalent Length Calculation: Failing to account for all fittings or trap equivalent length can lead to exceeding the furnace’s maximum TEVL, which can cause pressure-switch trips, poor combustion, or unsafe operation.

  • Improper Termination: Incorrect clearances between intake and exhaust terminations (or poor placement) can lead to back‑drafting or re‑ingestion of flue gases.

  • Skipping Testing & Commissioning: After installation, always test for spillage, inspect all joints, and confirm proper condensate drainage.

5. Why a Good Termination Cap Matters

A high-quality termination cap is more than just decorative: it helps block debris, insects, small animals, and water from entering your intake or exhaust, while ensuring proper venting. Without the right cap, your system is vulnerable to clogs, back‑pressure, or damage.

Here is a highly recommended product that works well with typical PVC vent systems on high‑efficiency furnaces:

Amazon Product Recommendation
Stainless‑Screen PVC Termination Cap (Amazon)

  • This termination cap features a stainless-steel screen that effectively prevents leaves, insects, or small critters from entering the intake or exhaust.

  • Its design allows for reliable drainage of condensate, helping prevent water pooling.

  • The durable materials and solid construction make it long-lasting, and it’s well-rated by customers on Amazon.

  • Using this cap provides peace of mind, as it supports safe, efficient vent termination and complements the strict venting protocols required by Goodman, Carrier, and other furnace manufacturers.

6. Honest Recommendation & Why This Product Is a Smart Choice

As someone who cares deeply about HVAC safety and performance, I truly believe this termination cap is a smart and practical upgrade:

  • Reliability: The stainless-steel mesh is stronger and more resilient than cheap plastic screens, ensuring longevity and protection.

  • Safety: By keeping out pests and debris, you reduce the risk of vent obstructions — which can be dangerous.

  • Maintenance: Well-designed termination makes future maintenance easier; you are less likely to deal with clogged terminations.

  • Value: Compared to the potential cost of a blocked vent, a malfunctioning furnace, or a safety incident, investing in a good termination cap is very cost-effective.

7. Example Venting Layout (Conceptual Diagram)

Here’s a simple diagram showing how a two‑pipe (direct-vent) system typically looks for a condensing furnace:

     Outside Wall
 ┌─ Intake Termination Cap (screened)
 │
 │   ┌──▼──┐
 │   │ PVC intake pipe (e.g., 2″) – slope or level per manual
 │   │
 │   │
 │   └──▲──┐
 │         │
 │    Furnace
 │         │
 │   ┌──▼──┐
 │   │ PVC exhaust pipe – sloped back toward furnace
 │   │
 └─► Exhaust Termination Cap (screened)

  • Both intake and exhaust pipes terminate outside.

  • Exhaust pipe is sloped slightly back to facilitate condensate drainage.

  • The termination caps include mesh/screen protection.

  • Intakes should be located away from contaminants and properly spaced from exhaust.

8. Conclusion & Final Tips

  1. Always follow the furnace manufacturer’s manual (Goodman, Carrier, etc.) for venting, clearances, and pipe specifications.

  2. Use correct materials — don’t substitute low-quality or non-approved piping and fittings.

  3. Ensure proper slope and support for all vent and intake runs to handle condensate safely.

  4. Use a high-quality termination cap, like the stainless‑screen termination cap linked above, to protect against pests, debris, and moisture.

  5. Test thoroughly after installation: check for leaks, spillage, and proper condensate draining.

  6. Maintain your system: periodically inspect the vent, screen, and trap to ensure the system stays clear and functional.
